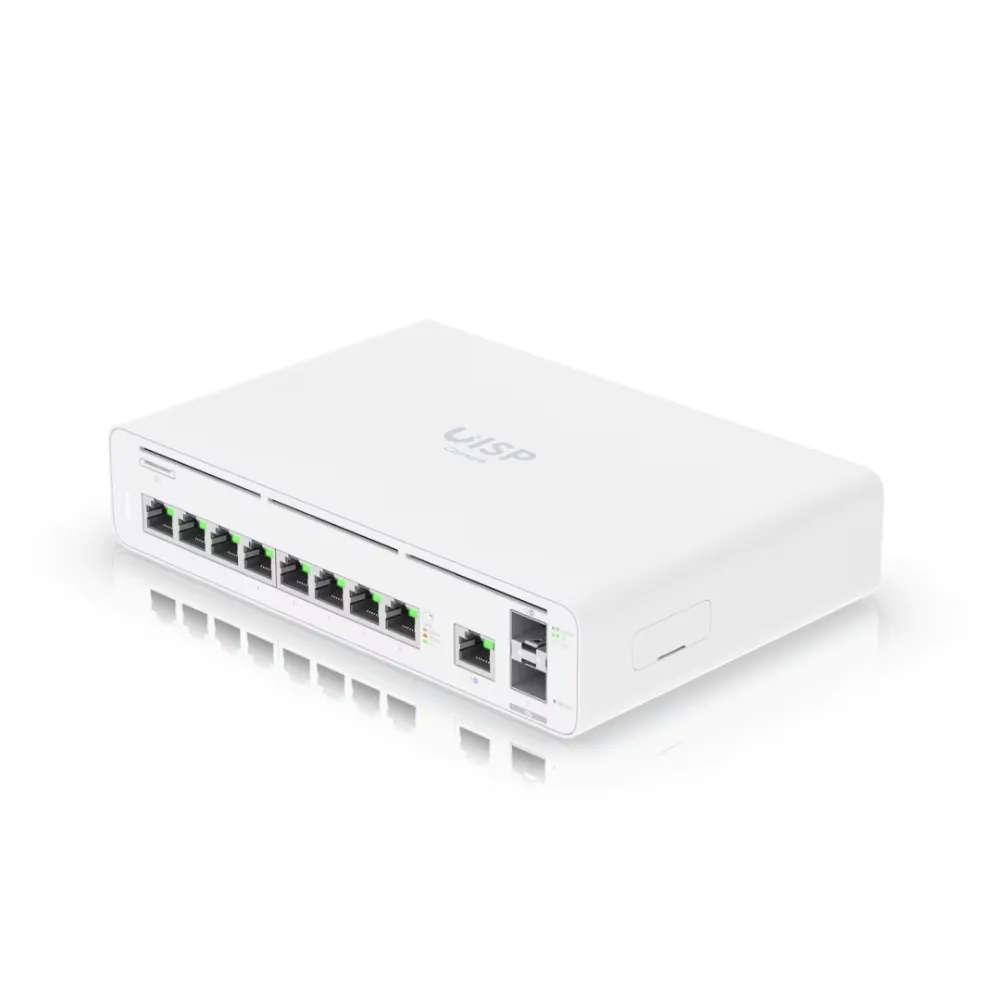

UISP host console with an integrated switch and multi-gigabit Ethernet gateway.
(9) GbE RJ45 ports
(2) 10G SFP+ ports
Up to 8,500 Mbps NAT throughput*
Powered by an external AC/DC adapter (included)
Additional Power TransPort input for DC redundancy
1U rack or wall-mountable (kits included)
*Up to 2,250 Mbps with QoS enabled; up to 7,500 Mbps with IP Accounting enabled.
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 210.4 x 140.2 x 43.7 mm (8.3 x 5.5 x 1.7") |
| Weight | 1.5 kg (3.2 lb) |
| Enclosure materials | SGCC steel, polycarbonate |
| Hardware | |
| Processor | Quad-core ARM® Cortex®-A57 at 1.7 GHz |
| Memory | 4 GB DDR4 |
| Onboard flash storage | 16 GB eMMC |
| Onboard storage | 128 GB SSD |
| Card slot | (1) microSD |
| Networking interface | (8) LAN: GbE RJ45 ports (1) LAN: 1/10G SFP+ port (1) WAN: GbE RJ45 port (1) WAN: 1/10G SFP+ port |
| Management interface | Ethernet In-band Bluetooth |
| Power method | (1) External AC/DC adapter (1) Power TransPort DC input 27V DC, 1.5A |
| Power supply | 24V DC, 2.5A power adapter (included) |
| Supported voltage range | 24—28V DC |
| Max. power consumption | 30W |
| ESD/EMP protection | Air: ± 15kV, contact: ± 8kV |
| Operating temperature | -10 to 50° C (14 to 122° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| LEDs | |
| System | Status |
| RJ45 data ports | Speed/link/activity |
| SFP+ data ports | Speed/link/activity |
